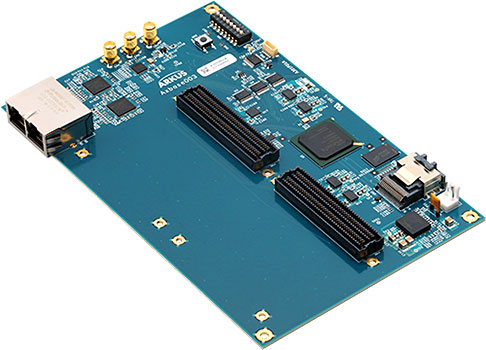

Axbase 003
FMC (LPC) Carrier Board
Axbase 003 is the carrier board of the LPC type FMC module. In addition to extensibility by installing various FMC IO modules as an option of COM Express’s MiniITX general-purpose carrier board, it is possible to implement CPU-less front-end data collection by installing BeeLine hard logic Gb Ethernet even if it is not combined with COM Express It can also be used as a board.
- Equipped with Xilinx SPARTAN-6 FPGA (XC6SLX45T-2CSG324C)
- DDR3 memory 256 kB (128 × 16 bit width) loaded
- Two LPC FMC slots installed
- PCIe x4 interface
- 2 GbE ports
- External clock input (LVDS differential input with SMA connector × 2)
- External trigger input (LVTTL single end input with SMA connector × 1)
- Operates from 12 VDC single power supply
Specification
| FMC slot | Number of slots | 1 |
| Standard |
FPGA Mezzanine Card (FMC) Low Pin Count (LPC) |
|
| Slot width | Single | |
| Stacking height | 10 mm | |
| VADJ | 2.5 V | |
| Connector | 2.5 V CMOS, LVDS | |
| PCIe Port | Number of ports | 1 |
| Standard | PCI Express 2.0 | |
| Number of lanes | x1 | |
| Control signal | PCICLK / PERST # / WAKE | |
| Connector | miniSAS-36P type (original specification) | |
| GbE Port | Number of ports | 2 |
| Communication Speed | 1000 Mbps | |
| Protocol | UDP (TCP compatible) | |
| PHY device | LAN 8810i-AKZE (SMSC) | |
| Connector | RJ-45 | |
| Memory | DDR 3 | 256 MB |
| Outline | 120 (L) x 190 (W) (mm) | |
| Input Power | 12 V ± 5% | |
| Usage environment |
0 to 50 ° C 90% RH or less (no condensation) |
|

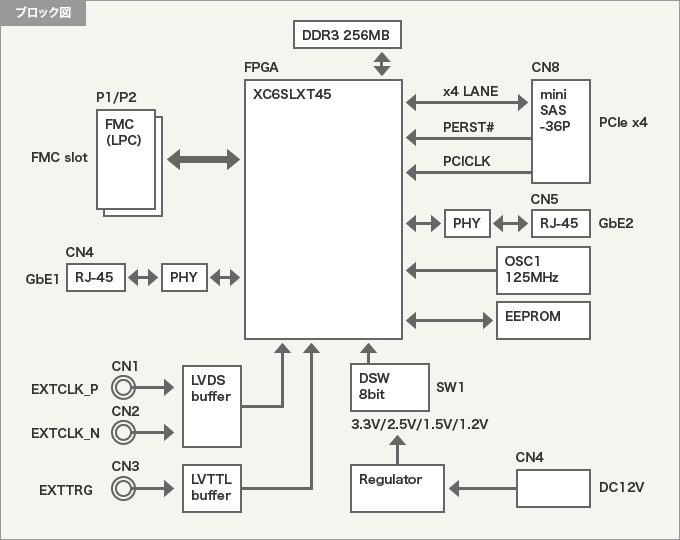

Block Diagram
